Noble Onyx

Driver Configuration：

• 1 DD - Bass
• 2 BA - Mid
• 2 BA - High
• 2 Electrostatic- Ultra High
• 1 Bone Conductor to enhance the high and ultra high.

Sound Tuning

• Bone Conductor - The PZT bone conductor is attached to the housing, thus leading viberation to the housing and to the inner ear through bones rather than ear drum. The viberation through the eardrum from DD and BA as well as the viberation through the bones will heighten the atmospher.
• Dynamic -Customized 10mm dynamic driver for Onyx. It has an ante-chamber to reduce the mid and high of the dynamic in order to get the best bass out of it.
• BA -The individual BAs have a rear chamber hole to improve the sensitivity to get a higher resolution. Bigger tubes are applied on the ante-chamber of the BAs for high frequency. In that case, the sound of the high frequency could be kept well through the tubes rather than reduced through small tubes.
• EST - The sonion EST can reach high to 70kHz. It is beyond the frequency that people can hear. But it does not mean that one can not feel it. One can experience the rich details in ultra high through it. This is not something that ends at 20kHz can provide.

Housing

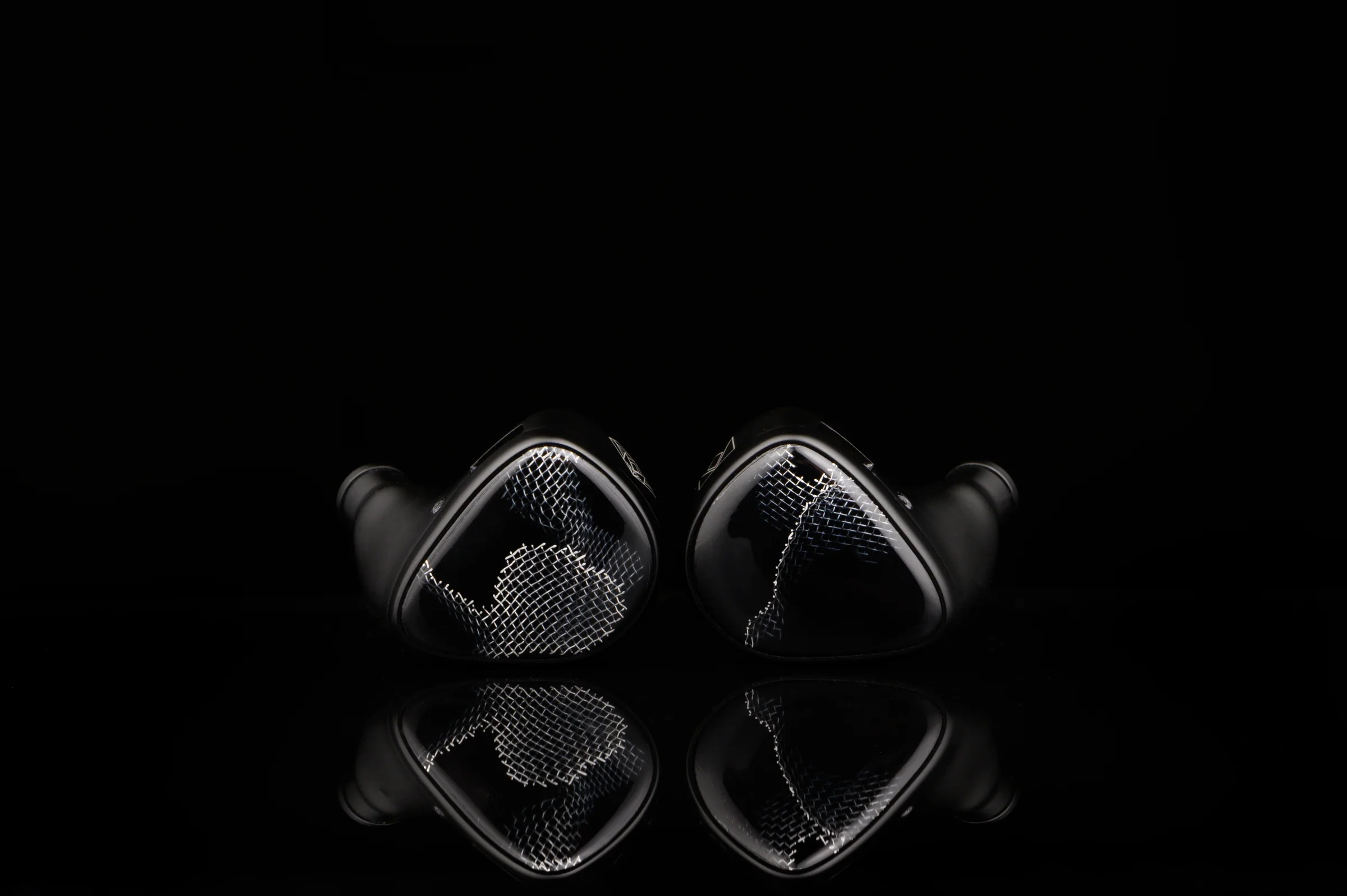

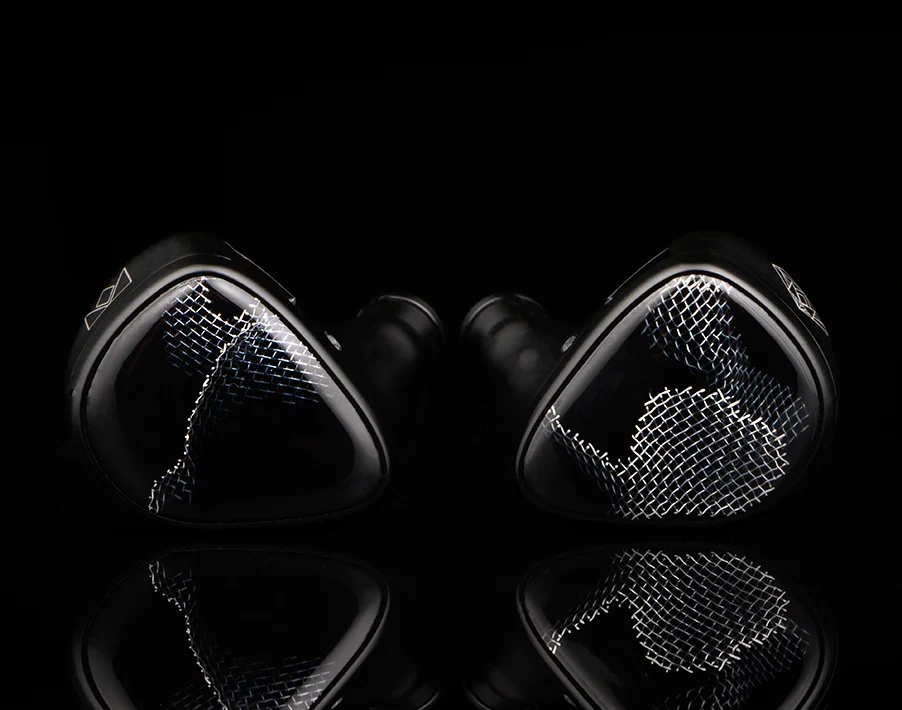

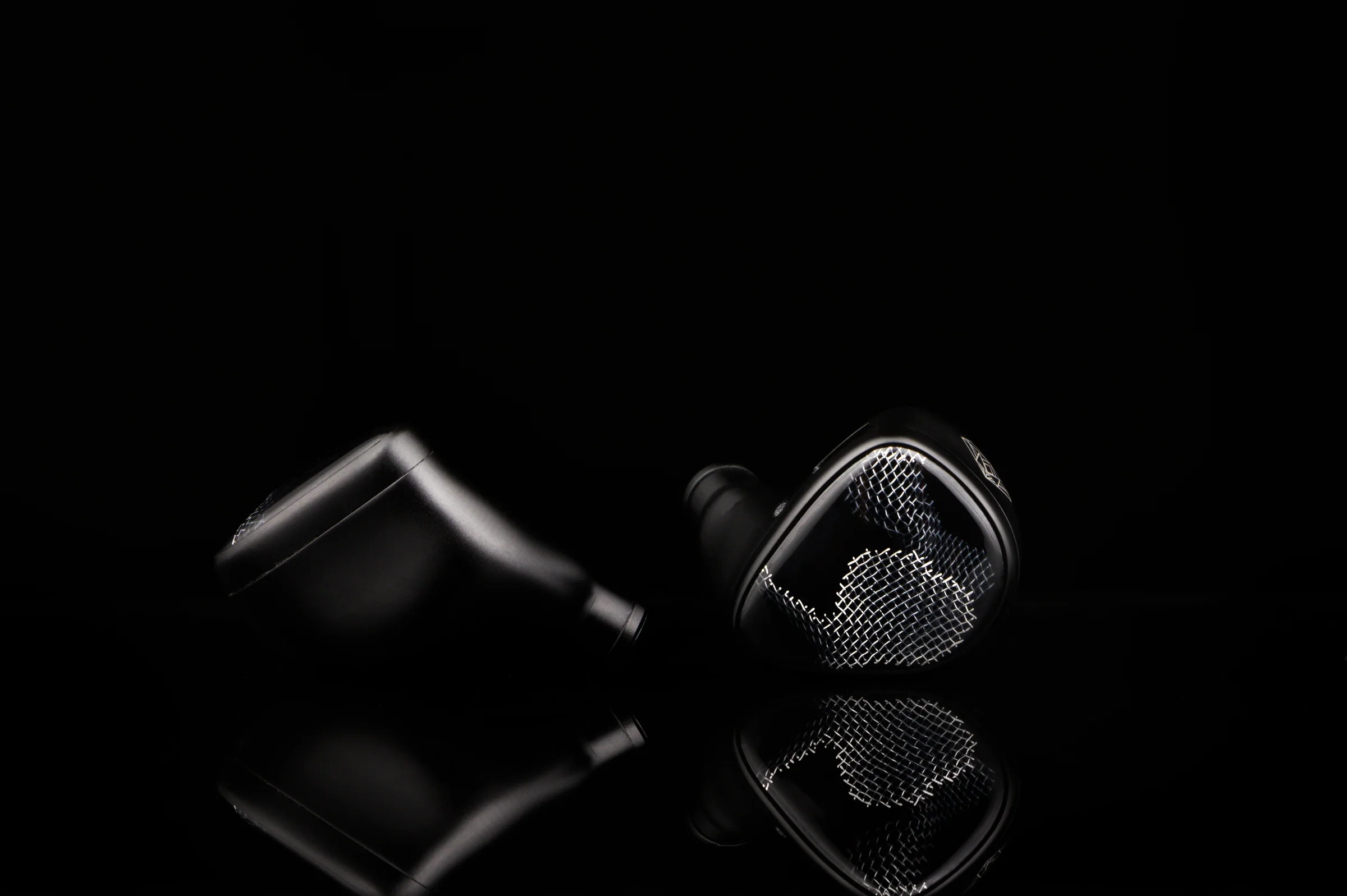

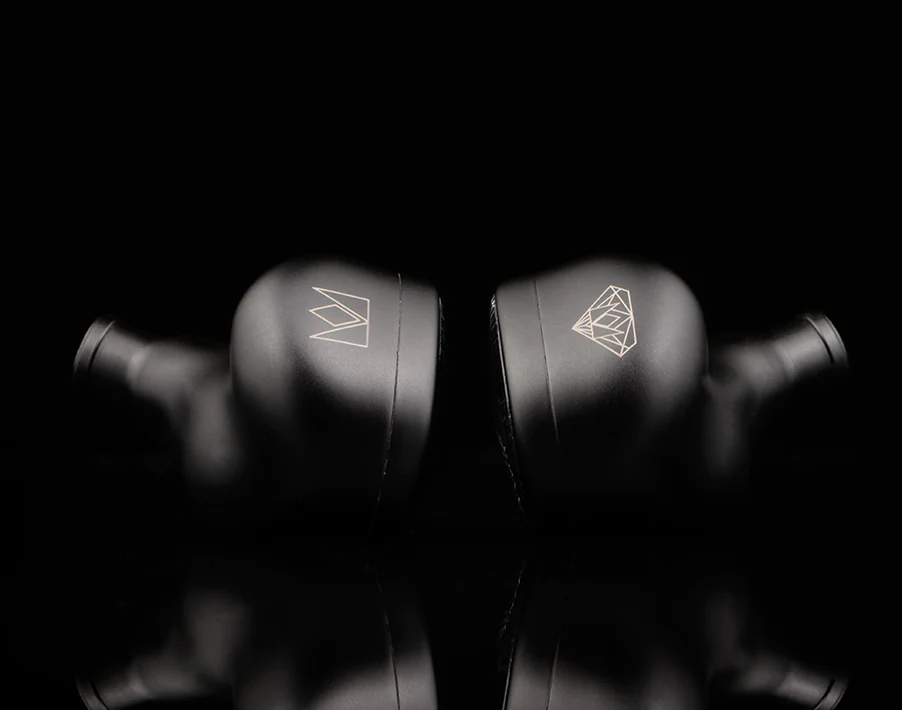

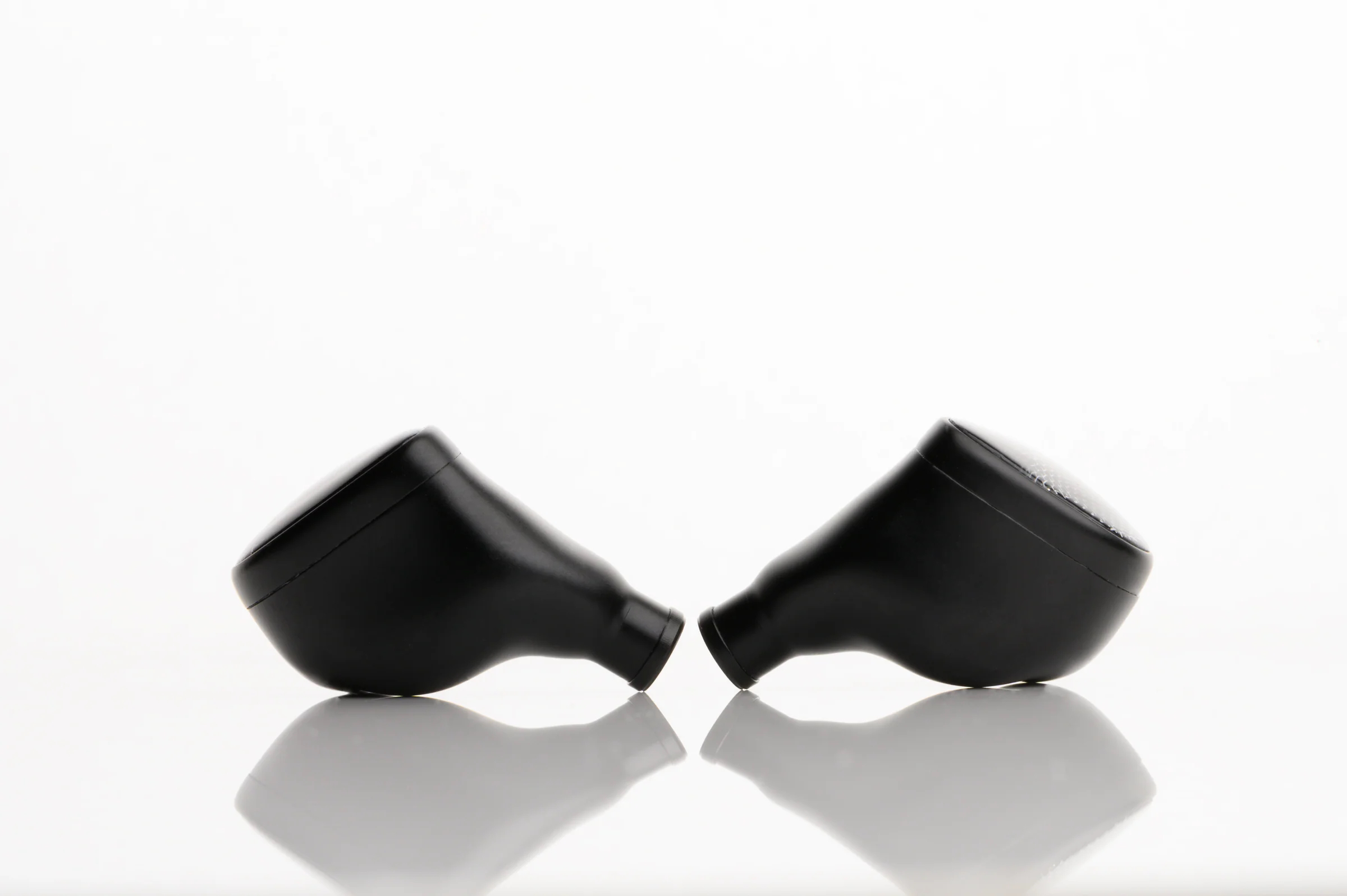

• Black ergonomic semi-custom aluminium shell, black aluminium cap and black mesh inserts.

Cable

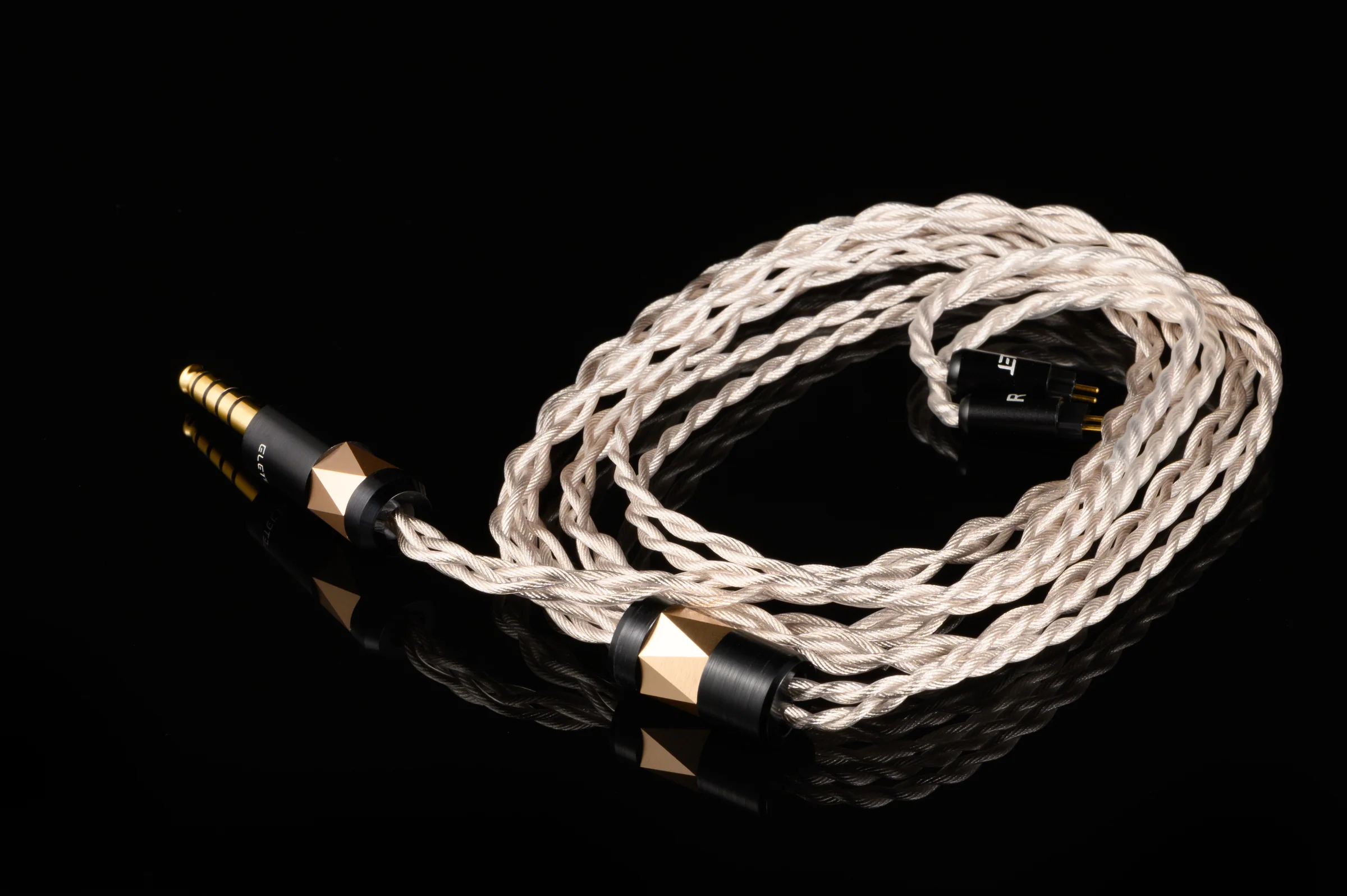

• Eletech Courage, customized for Onyx

Specifications

• 26 AWG, 4 Wires
• Flawless OCC Silver Plated Copper
• Extreme high strand counts
• Hybrid Type-4 Litz Geometry ; Kevlar Resilient Core
• Cryogenically Treated

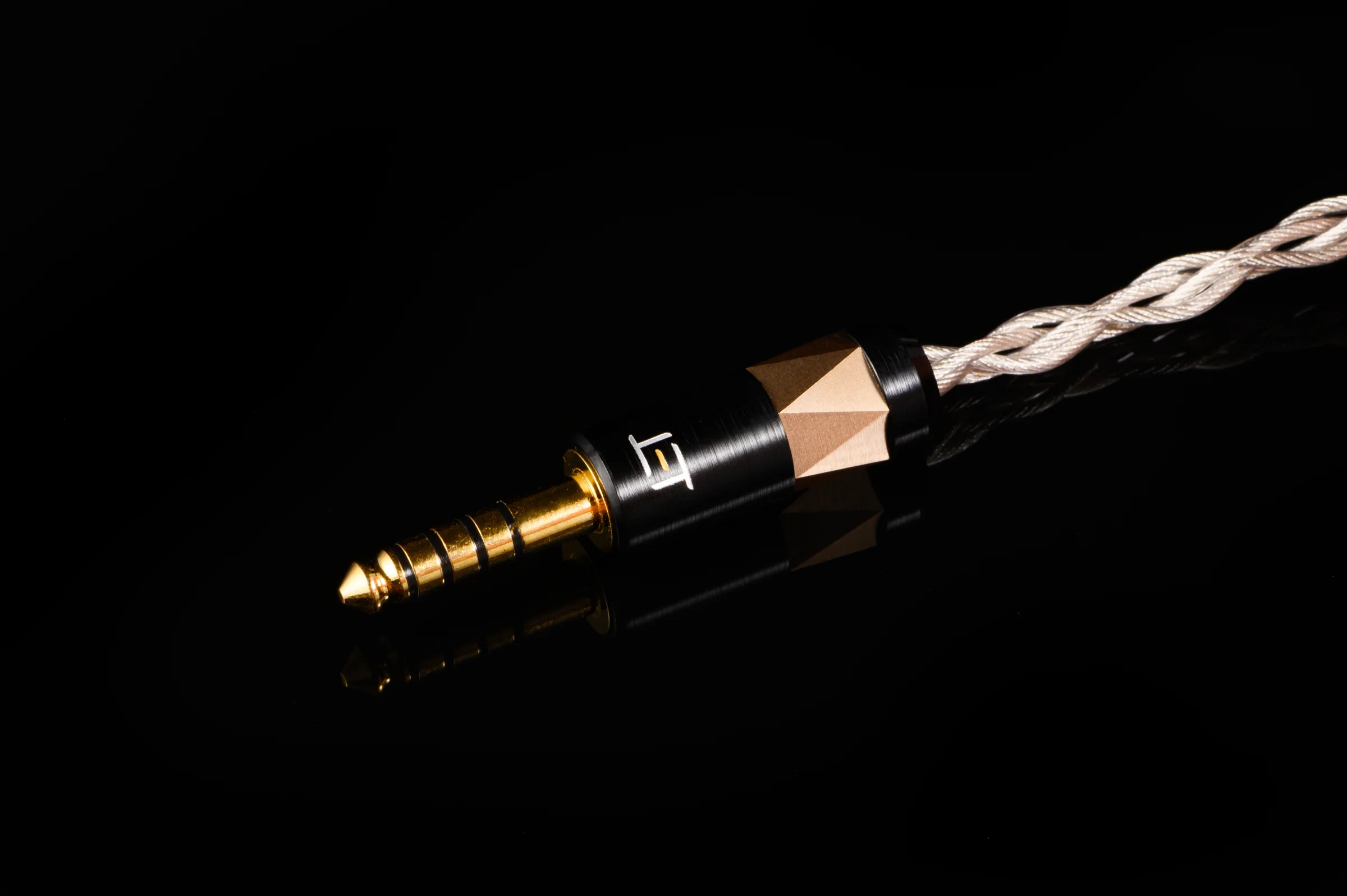

• Eletech Customised connectors and Y-split
• Individually Enamelled strands
• FlexiMax Insulation
