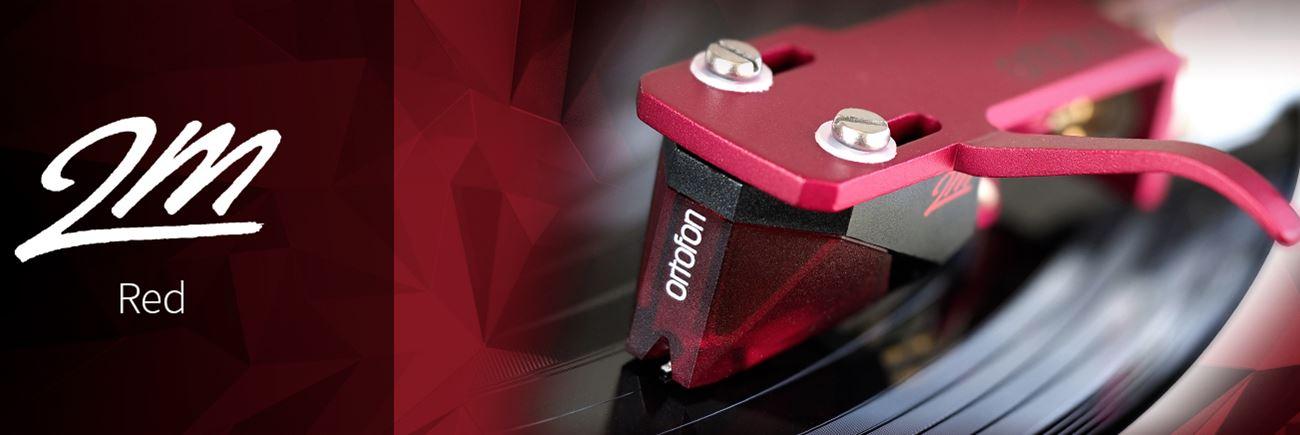

Ortofon 2M Red MM

Thương hiệu:

Ortofon 2M Red là mẫu kim mâm than vinyl cao cấp từ Ortofon, Nhật Bản. Hoàn thiện sản phẩm tinh xảo, chất âm ấn tượng, độ bền cao.


3.680.000 ₫

Vui lòng liên hệ Hotline – ‭để biết thêm chi tiết

Liên hệ


Thông tin chi tiết


Features of Ortofon 2M Red:

– an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy
– a tipped Elliptical diamond and split pole pins with a copper wire
– the cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Ortofon 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

Thông số chi tiết

Stylus typeElliptical
Tracking angle20°
Stylus tip radiusr/R 8/18 µm
Frequency response20-20.000 Hz + 3 / - 1 dB
Internal inductance700 mH
Tracking force range1.6-2.0 g (16-20 mN)
Channel balance at 1 kHz1.5 dB
Frequency range at - 3dB20-22.000 Hz
Channel separation at 1 kHz22 dB
Recommended load resistance47 kOhm
Tracking force, recommended1.8 g (18 mN)
Channel separation at 15 kHz15 dB
Compliance, dynamic, lateral20 µm/mN
Recommended load capacitance150-300 pF
Internal impedance, DC resistance1.3 kOhm
Output voltage at 1000 Hz, 5cm/sec5.5 mV
Tracking ability at 315Hz at recommended tracking force70 µm
