Features:
- Flagship ES9038Pro Sabre DAC Chip.
- High-Perfomance 8-Ch 32-Bit DAC.

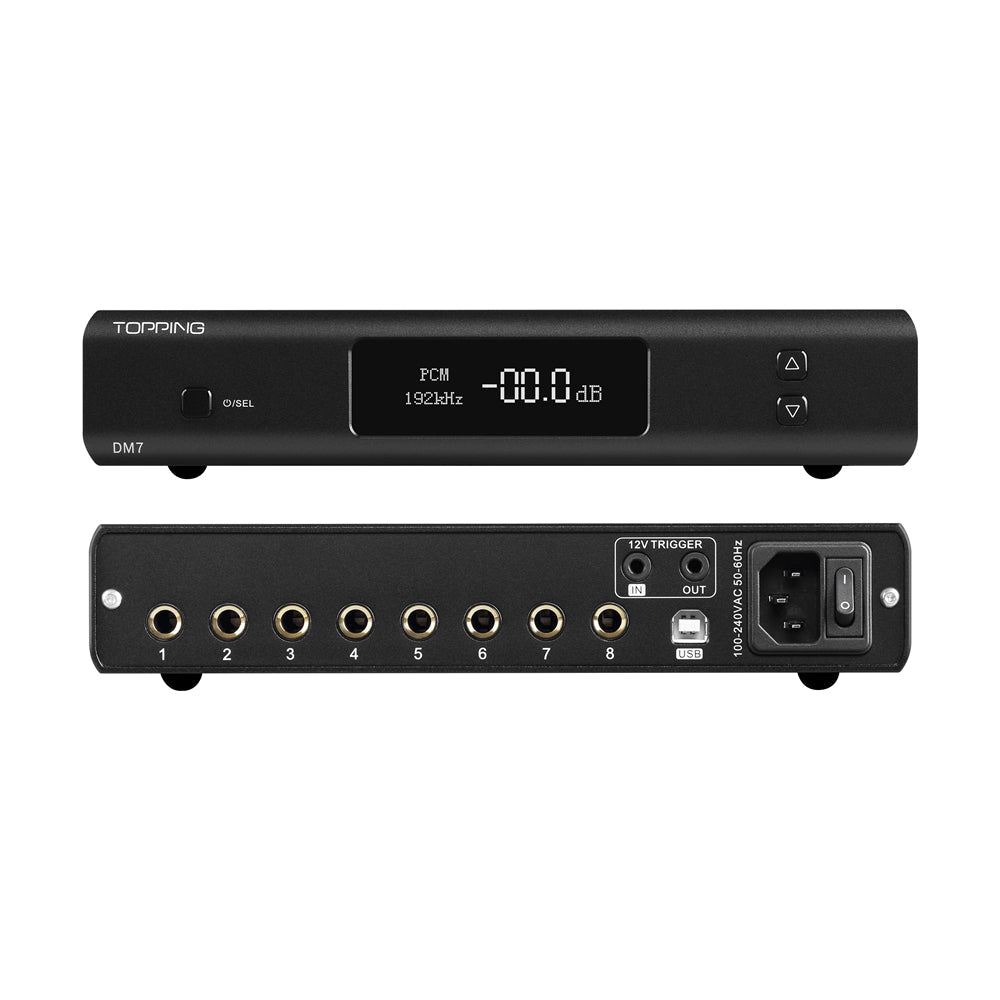

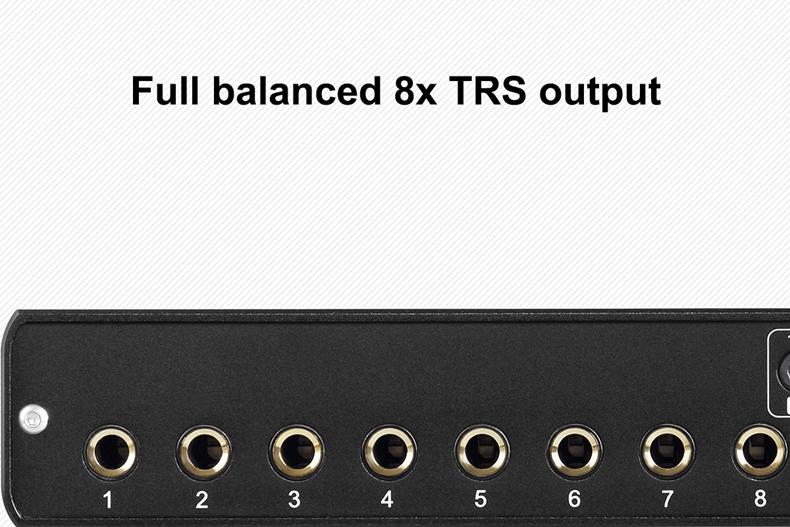

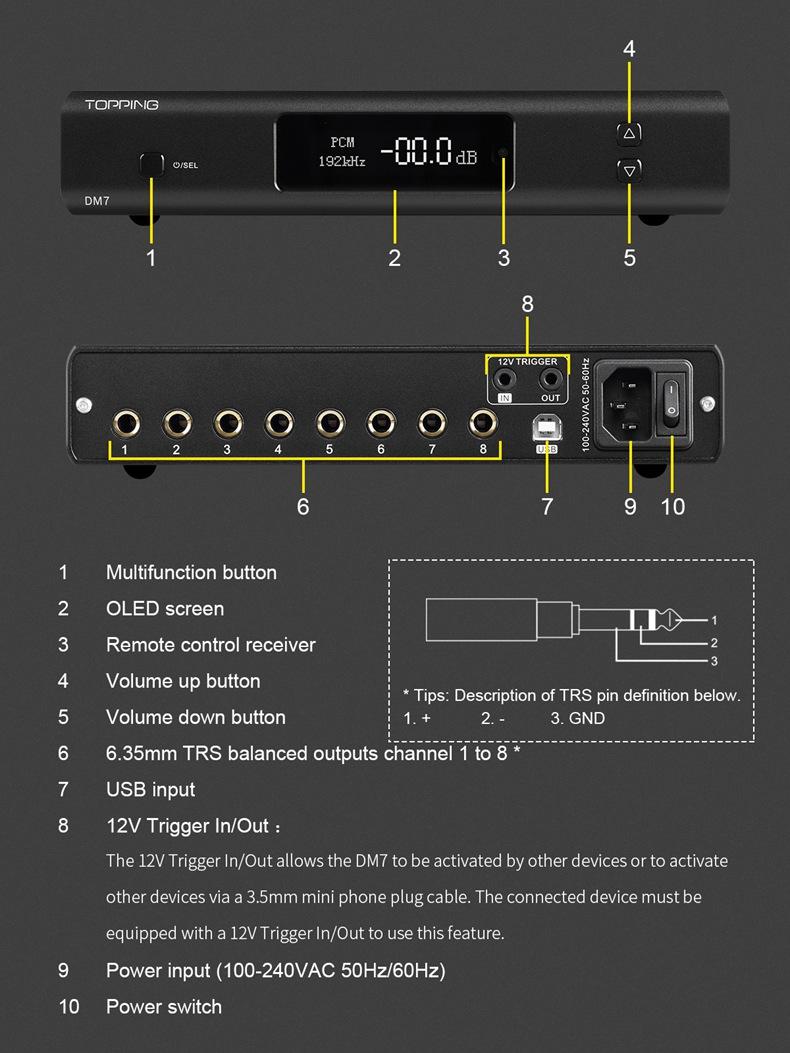

- Fully-Balanced 8xTRS outputs.
- High-res 32-Bit/192kHz and Native DSD128 decoding.
- Clean and Precise performance with ultra-low THD+N ratings.
- High-Dynamic range.
- 12V Tigger in & out.

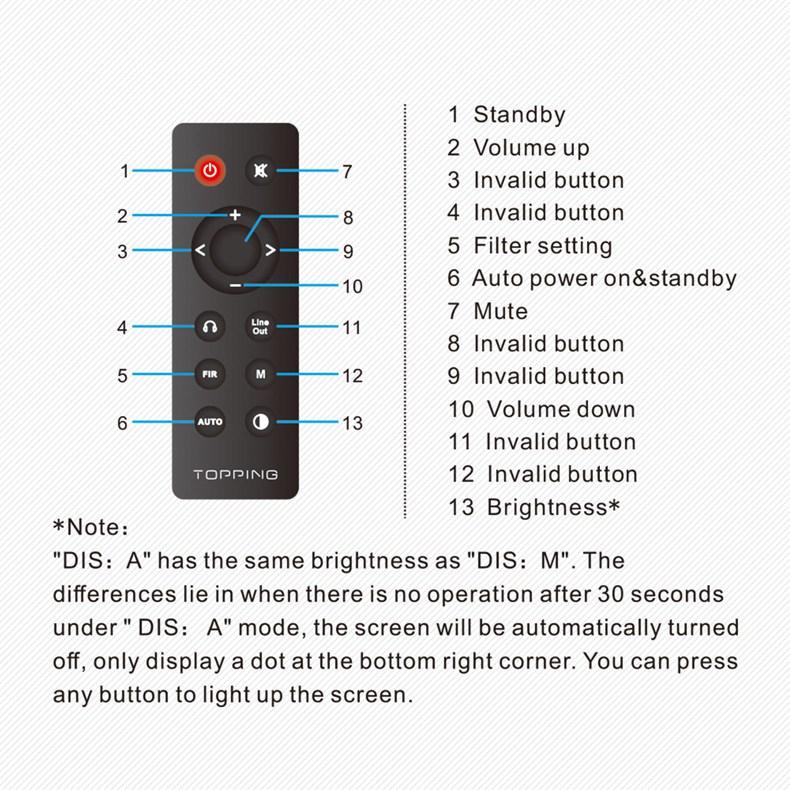

- Fully-functioning remote control.

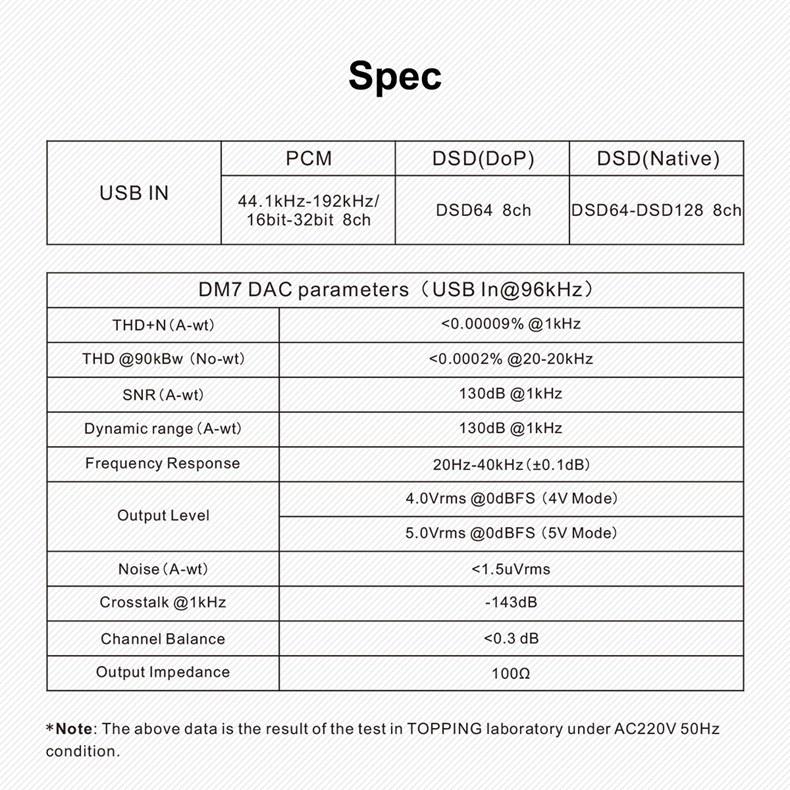

Technical Specifications:
- Decoding Specs: 32-Bit/192kHz PCM, DSD128 natively, DSD64(DoP).

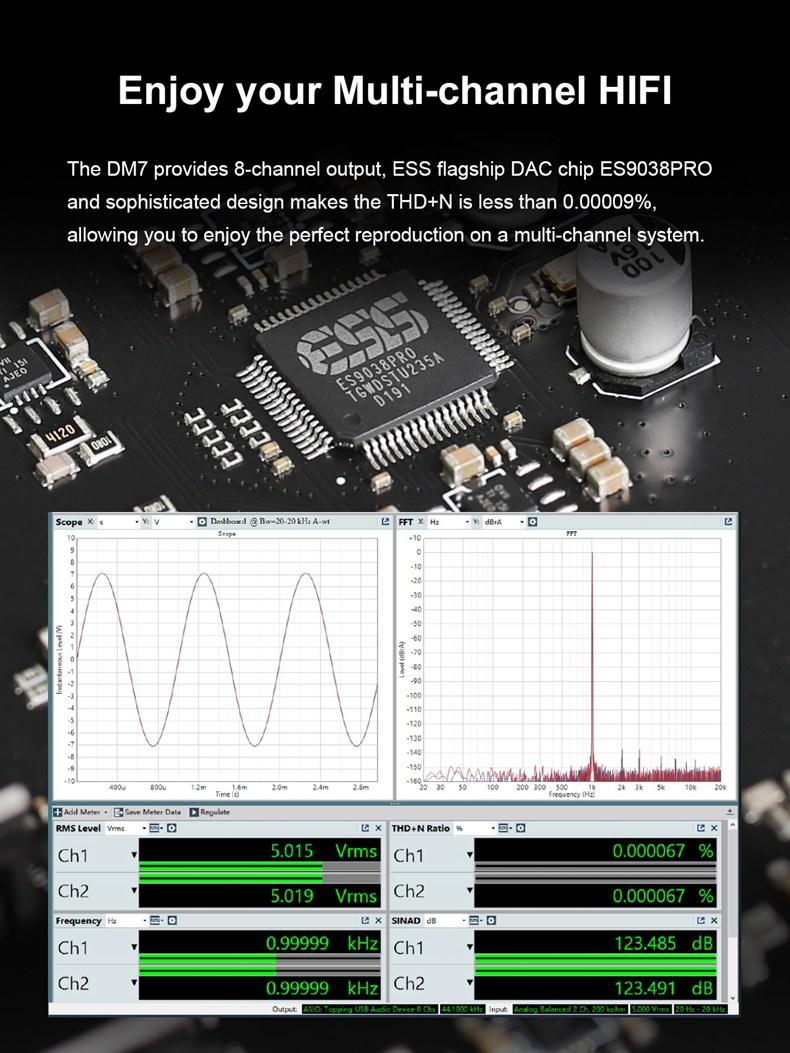

- THD+N(A-Weighted): <0.00009% @ 1kHz.
- THD @ 90kBw(no-weighted): <0.0002%@20Hz-20kHz.
- SNR: 130dB.
- Dynamic Range: 130dB.
- Frequency Response: 20Hz-40kHz.
- Output Level: 4.0Vrms(4V mode), 5.0Vrms(5V mode).
- Noise(A-Weighted): <1.5uVrms.
- Crosstalk@1kHz: -143dB.
- Channel Balance: <0.3dB.
- Output Impedance: 100Ω.

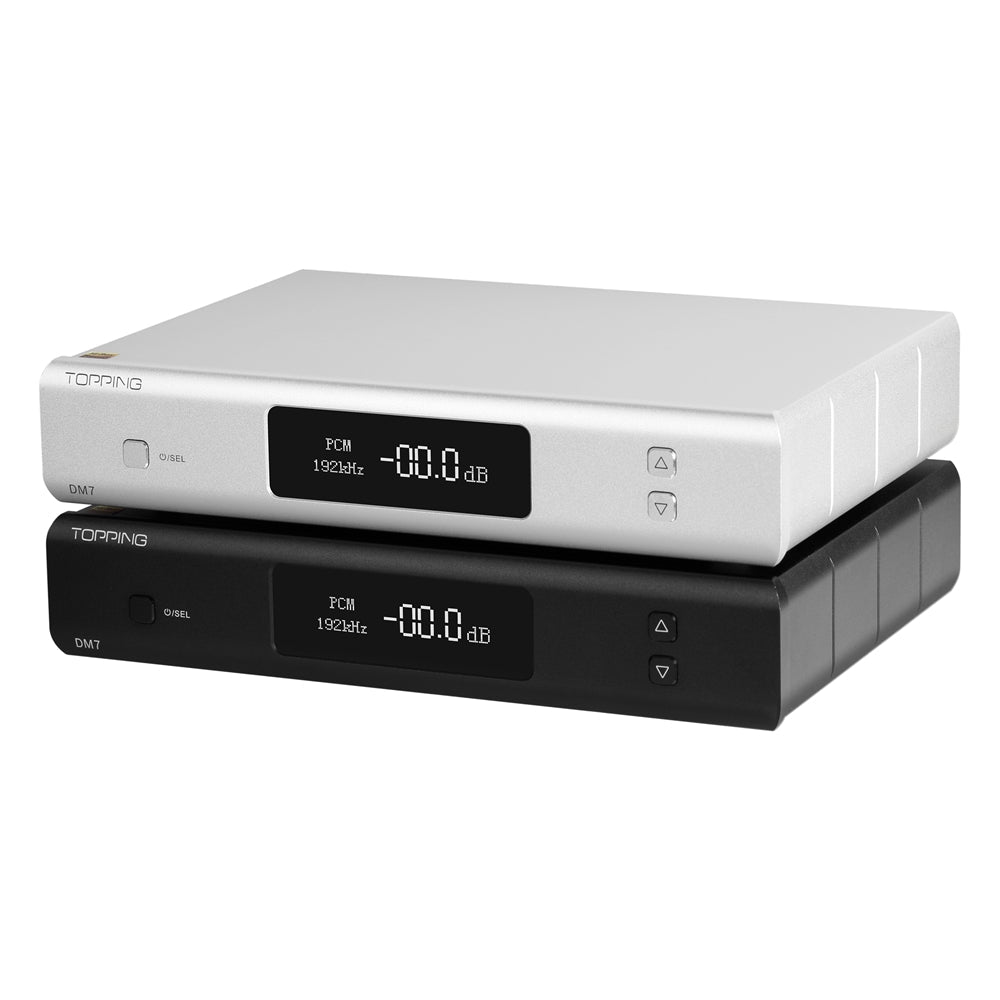

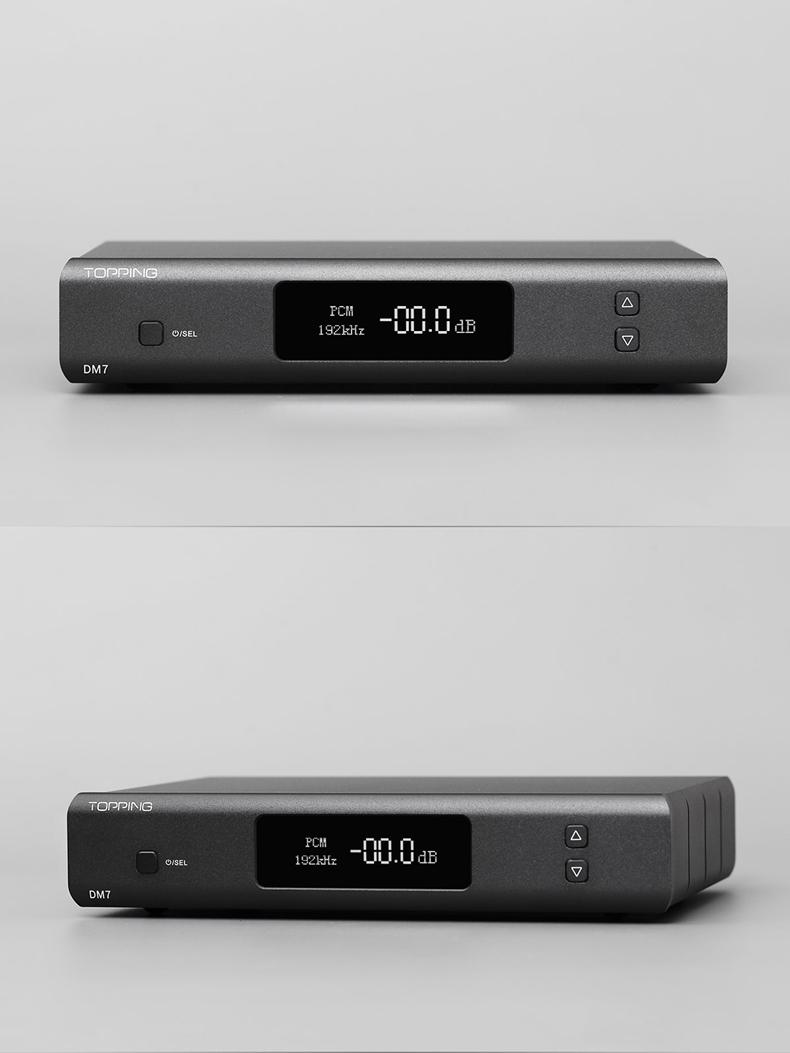

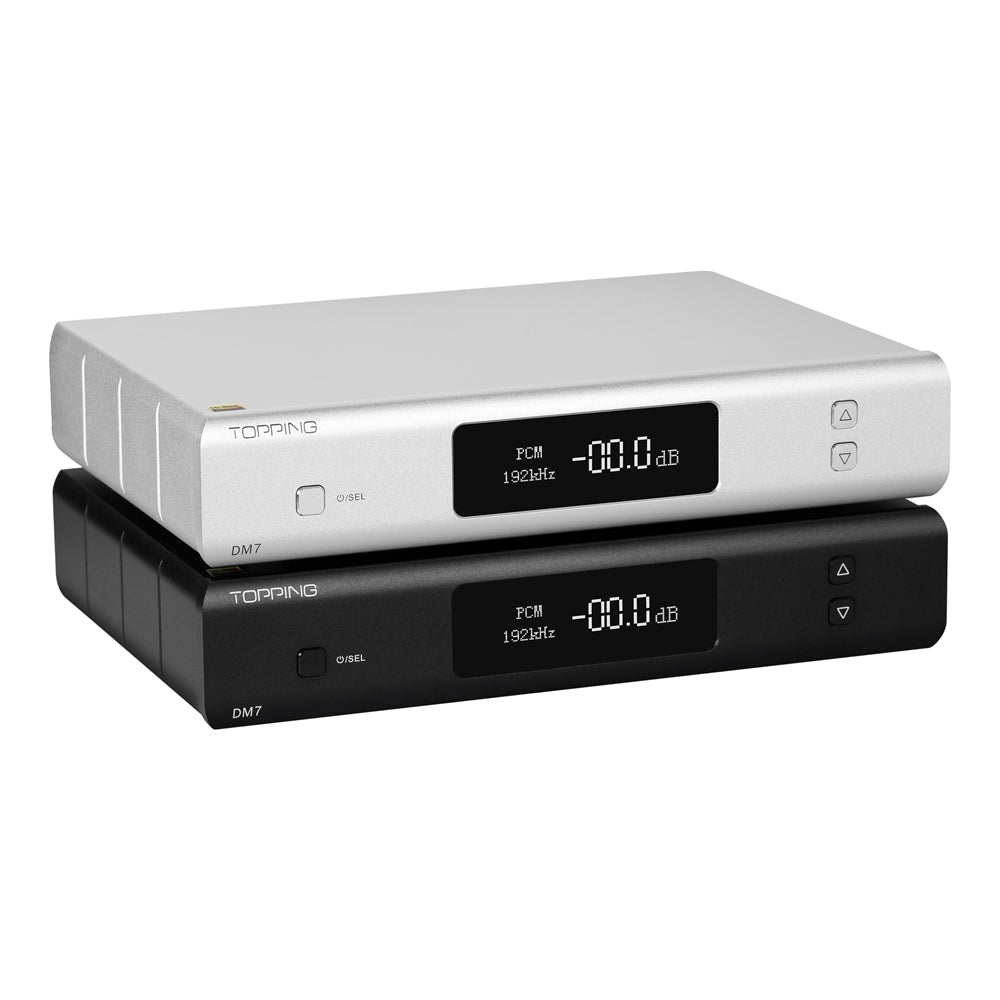

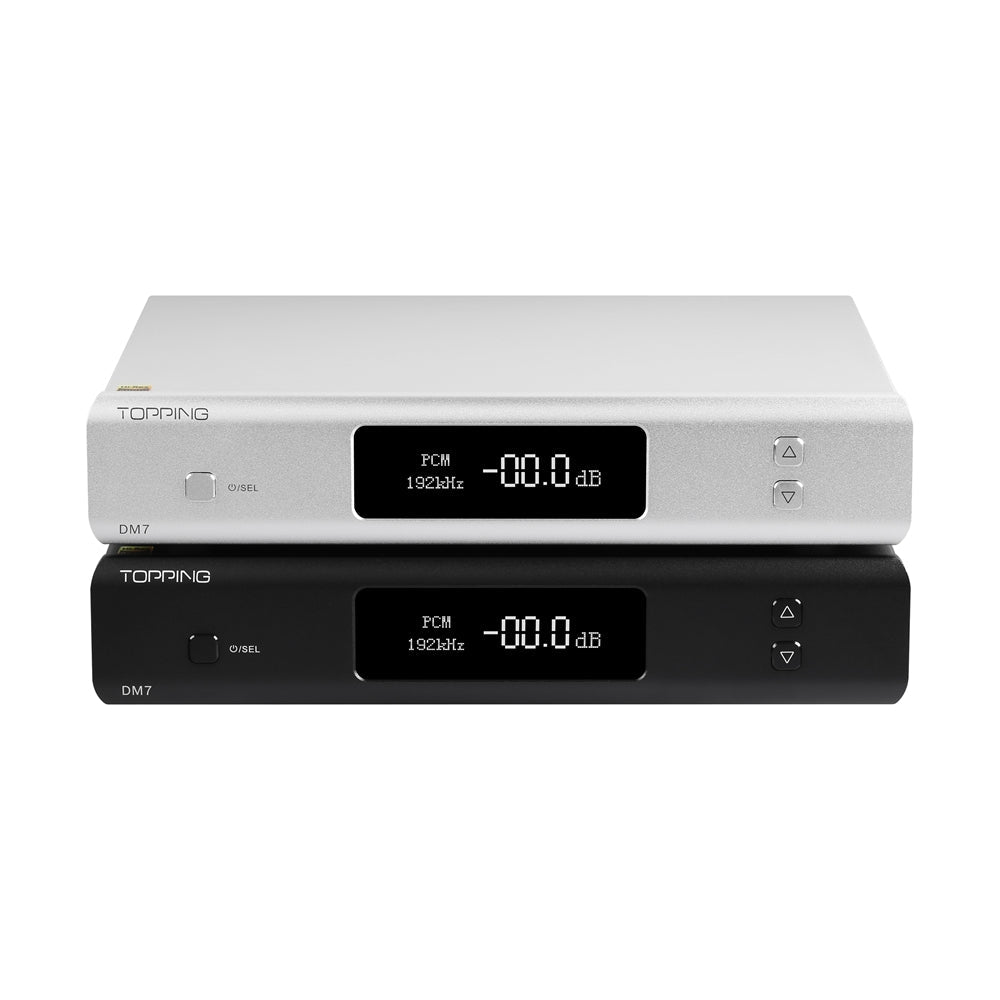

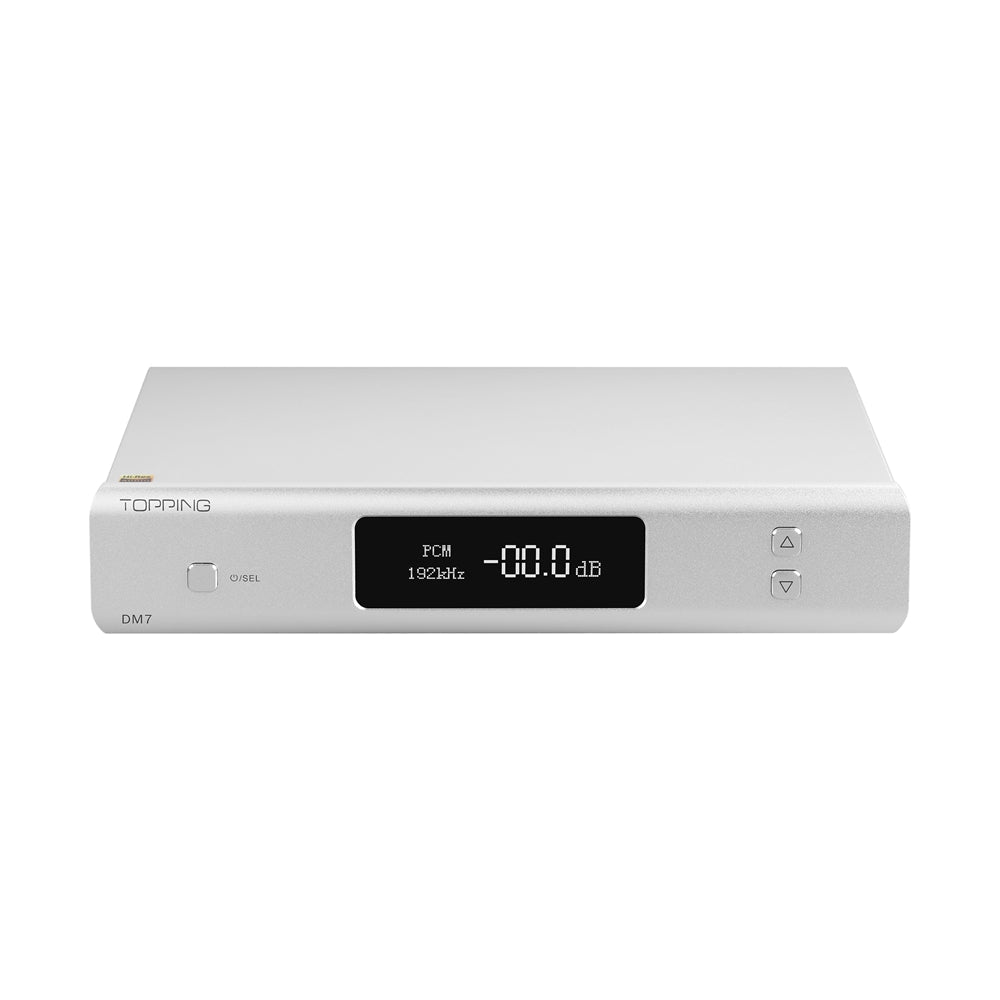

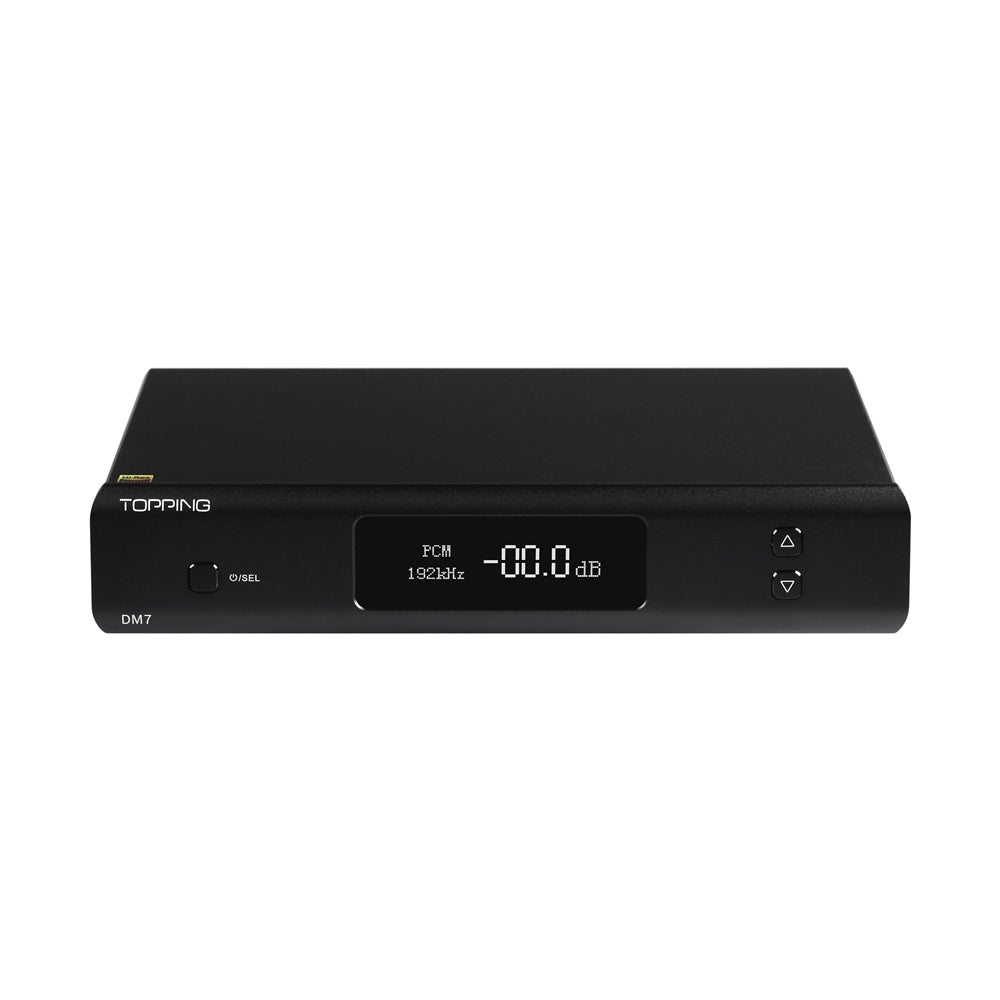

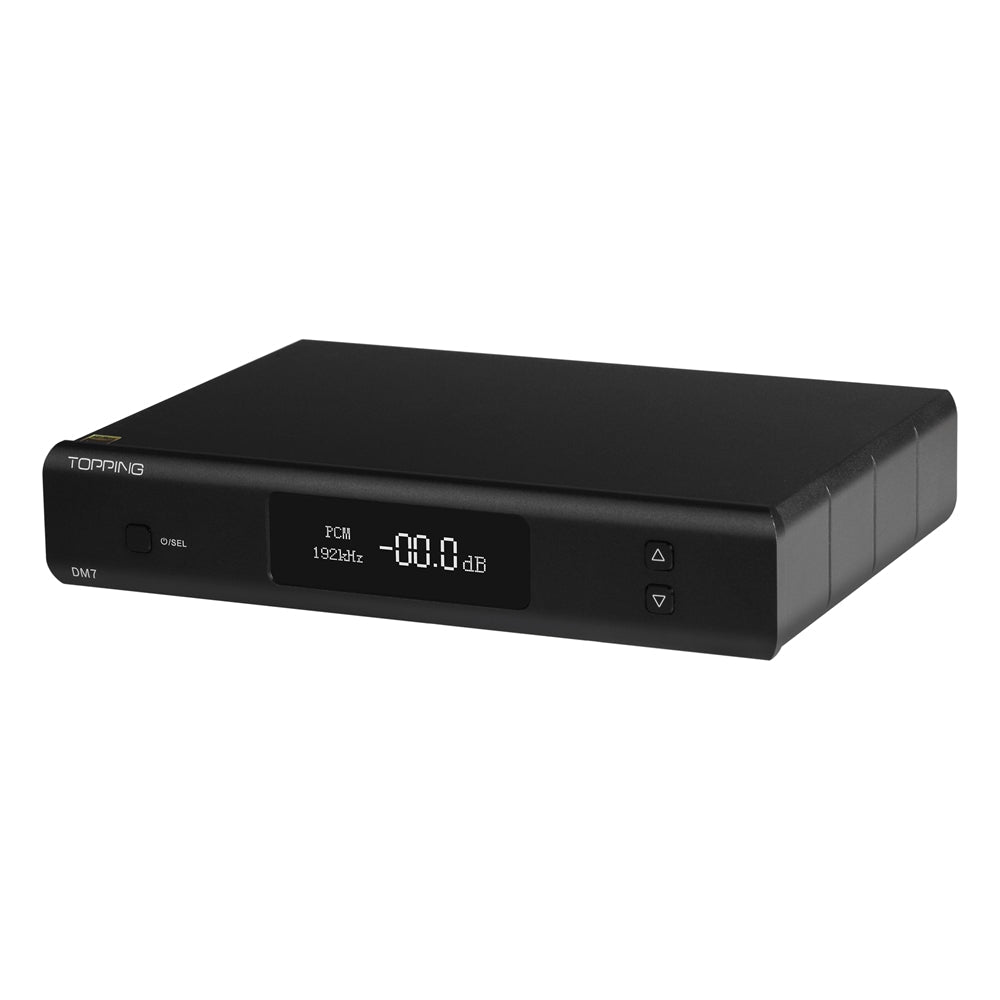

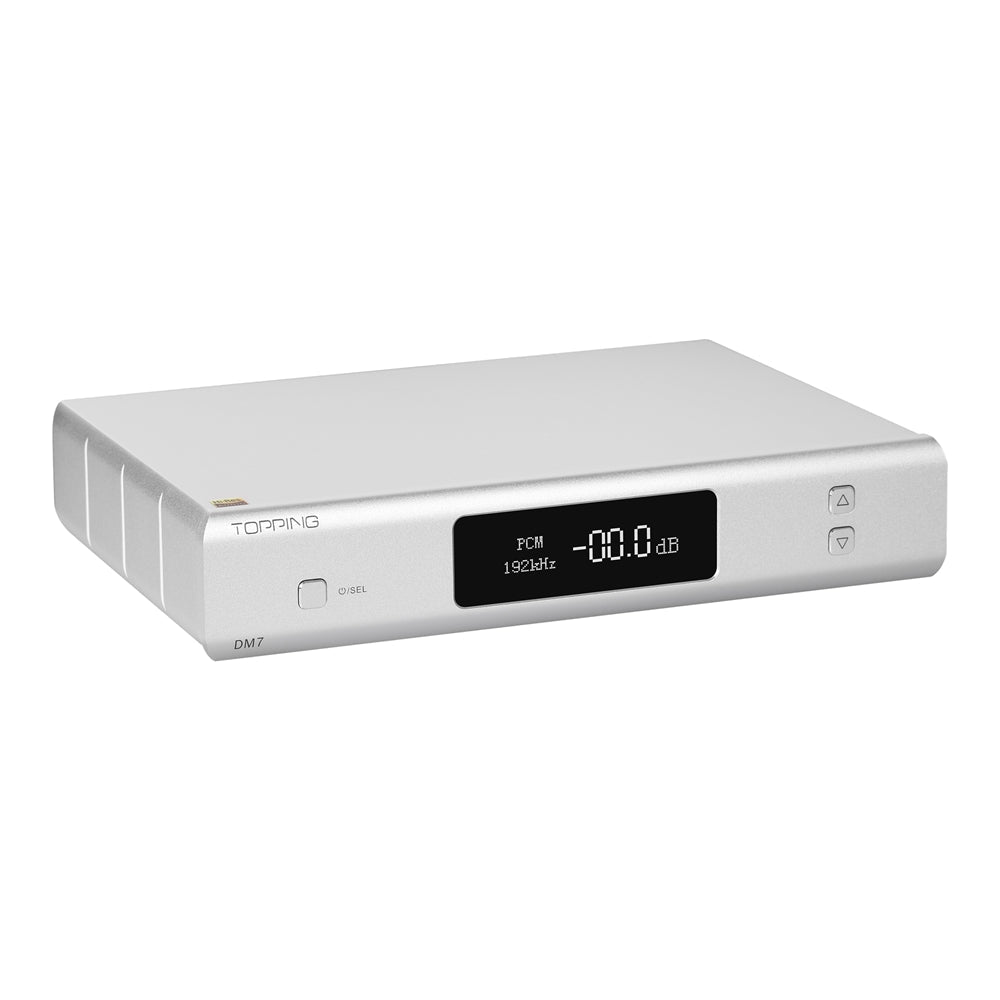

For all the multi-channel setup users, Topping has brought you guys the amazing Topping DM7. It’s a high-performance flagship-grade DAC with eight fully balanced TRRS output ports.With the help of the flagship ES9038 Pro Desktop DAC, the Topping DM7 packs top-level performance with ultra-low distortion and a high dynamic range.
Flagship Sabre DAC Chipset:
Topping DM7 adopts the trusted ES9038 Pro DAC chip from ESS Sabre Technologies. The 9038Pro is a high-performance 32-Bit DAC that provides crisp high-resolution audio performance. It works flawlessly for the 8-channel output and provides exceptional performance characteristics while decoding high-res PCM and DSD audio signals.
Full 8-Channel Output:
Topping DM7 acts as a multi-channel DAC. It provides 8-channel output allowing the users to create their dream multi-channel setup with a flagship Desktop DAC.
Supports High-Resolution Audio Signals:

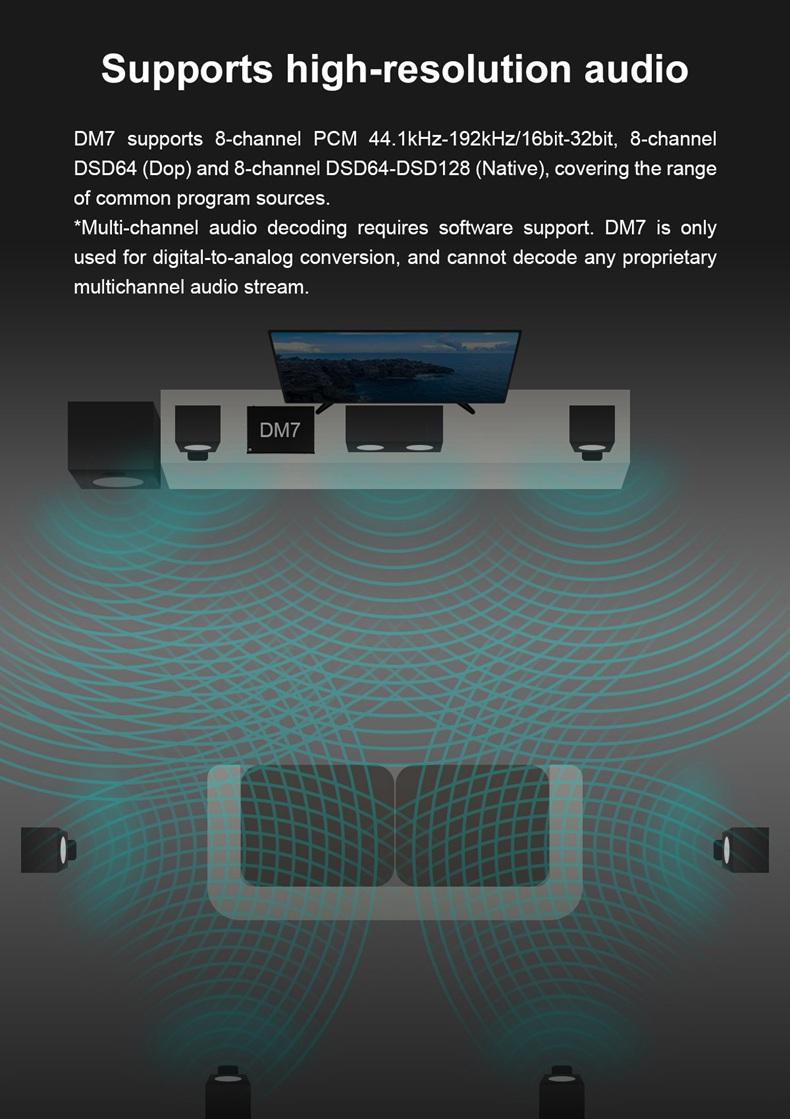

Topping DM7 supports 8-channel PCM and DSD audio signal decoding. It provides full decoding for 32-Bit/192kHz PCM and native DSD128 signals. It also supports DSD64 over the DoP profile.

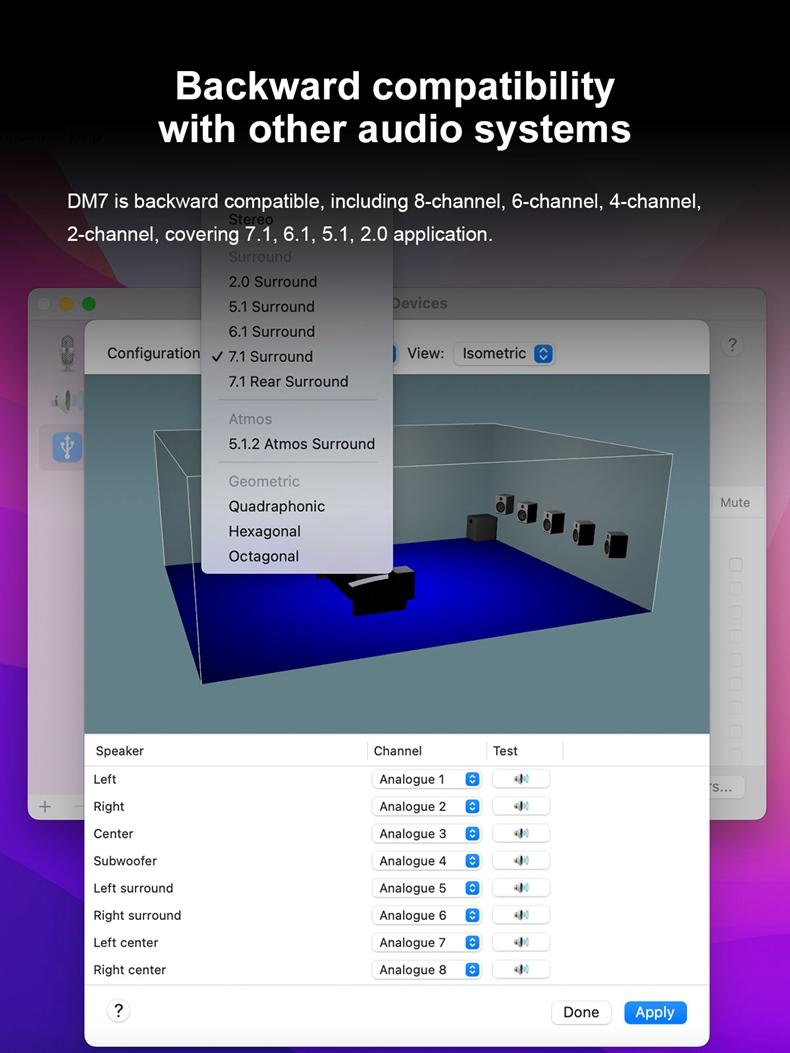

Backward Compatibility:

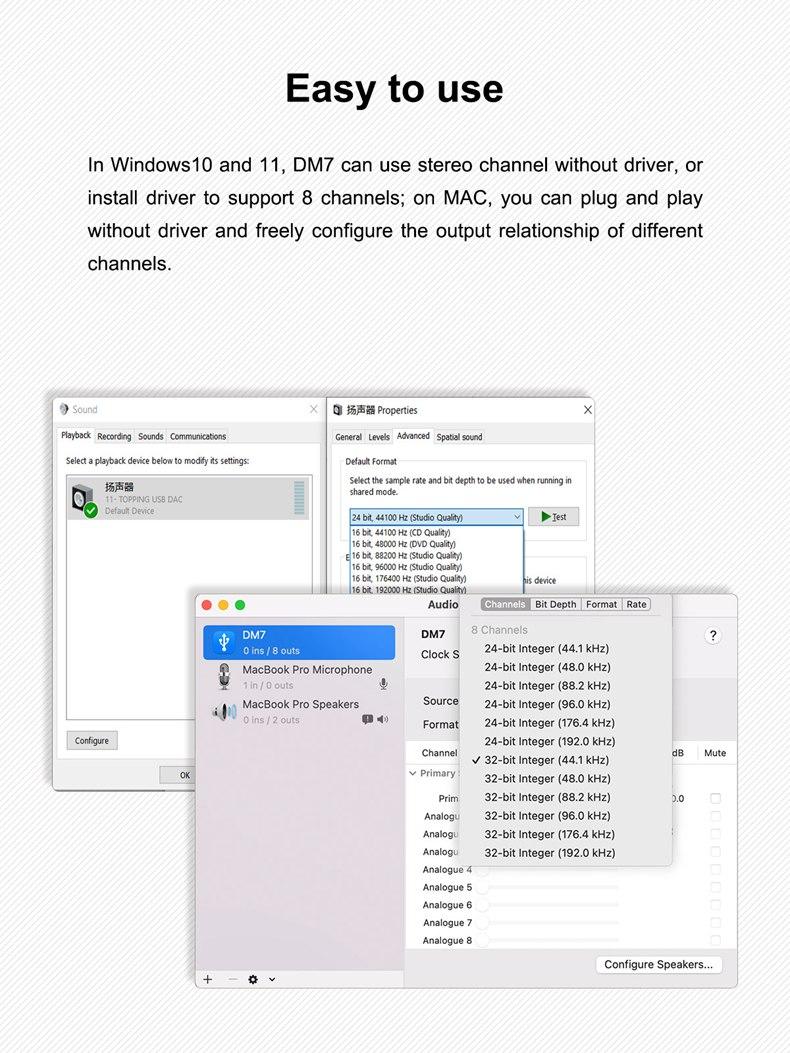

Topping DM7 is backward compatible. It can be connected to 8-channel, 6-channel, 4-channel, and 2-channel systems. You can create full 7.1Ch, 6.1Ch, 5.1Ch, and 2.0Ch setups easily. It supports both Windows and Mac devices. With Windows systems, it works in 2-ch mode until you upgrade the system with the latest driver.
